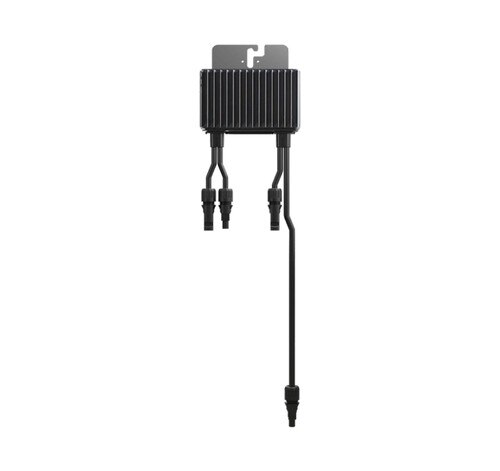

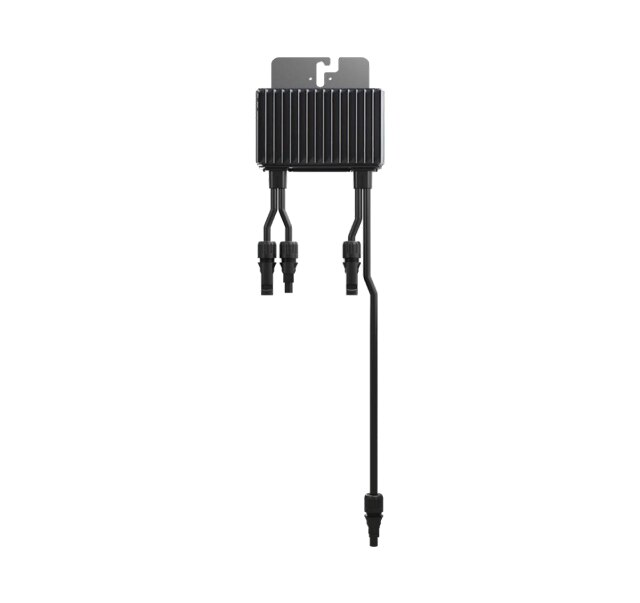

SolarEdge Optimiseur de puissance S1200 (2 in series, Outp. 5,4m) (S1200-1GM4MBV)

Name: SolarEdge Optimiseur de puissance S1200 (2 in series, Outp. 5,4m) (S1200-1GM4MBV)
SKU: 36-113643
Availability: PreOrder

N° pièce fabricant S1200-1GM4MBV

Référence 36-113643

Remises selon quantité disponibles

Protection du boîtier IP68

Certifications BE FR NL LU DE ES

Type d'accessoires Optimizer

Rated input DC power (W) 1 200 Max input voltage (V) VOC max 125

Max short circuit current ASC (A) 15,0

Max efficiency 99,5% Weighted efficiency 98,8%

Overvoltage category II Max output voltage (VDC) 80

Max output current (ADC) 20

Optimizer compatible inverter Three Phase SE16K and larger

Dimensions 15,5 x 12,9 x 5,9 cm Poids 1,06kg

Max system voltage (V) 1 000 Input/output connector MC4

Input wire length 0,1m Output wire length 5,4m

Module installation Landscape

Connection method Single input for series connected modules

Min/max string length 3ph 15 / 30

Max DC power per string (W) 15 000 Mounting Rail mounted

Conditionnement 10,0 pieces
